Are your gear production lines meeting their efficiency and precision targets? In industrial tooling, the gear hobs and gear milling cutters you choose can make all the difference. These gear cutting tools are fundamental to manufacturing high-quality gears used in everything from automotive transmissions to aerospace machinery. In fact, most gears today are produced using gear hobbing because it’s efficient and cost-effective compared to other methods. This guide will help industrial manufacturers and procurement teams worldwide understand these tools and how to select the right ones. We’ll cover what gear hobs and milling cutters are, their differences, why quality matters, and key factors in choosing the best gear cutting tools for your needs. By the end, you’ll see how the right choice can boost your production and how a high-quality supplier can become a valuable partner in your success.
Understanding Gear Hobs and Gear Milling Cutters
`Gear cutting is a precise machining process that creates the teeth of a gear. Two of the most common tools for this are gear hobs and gear milling cutters. Both serve to cut gear teeth, but they do so in different ways and are suited to different scenarios. Let’s define each:

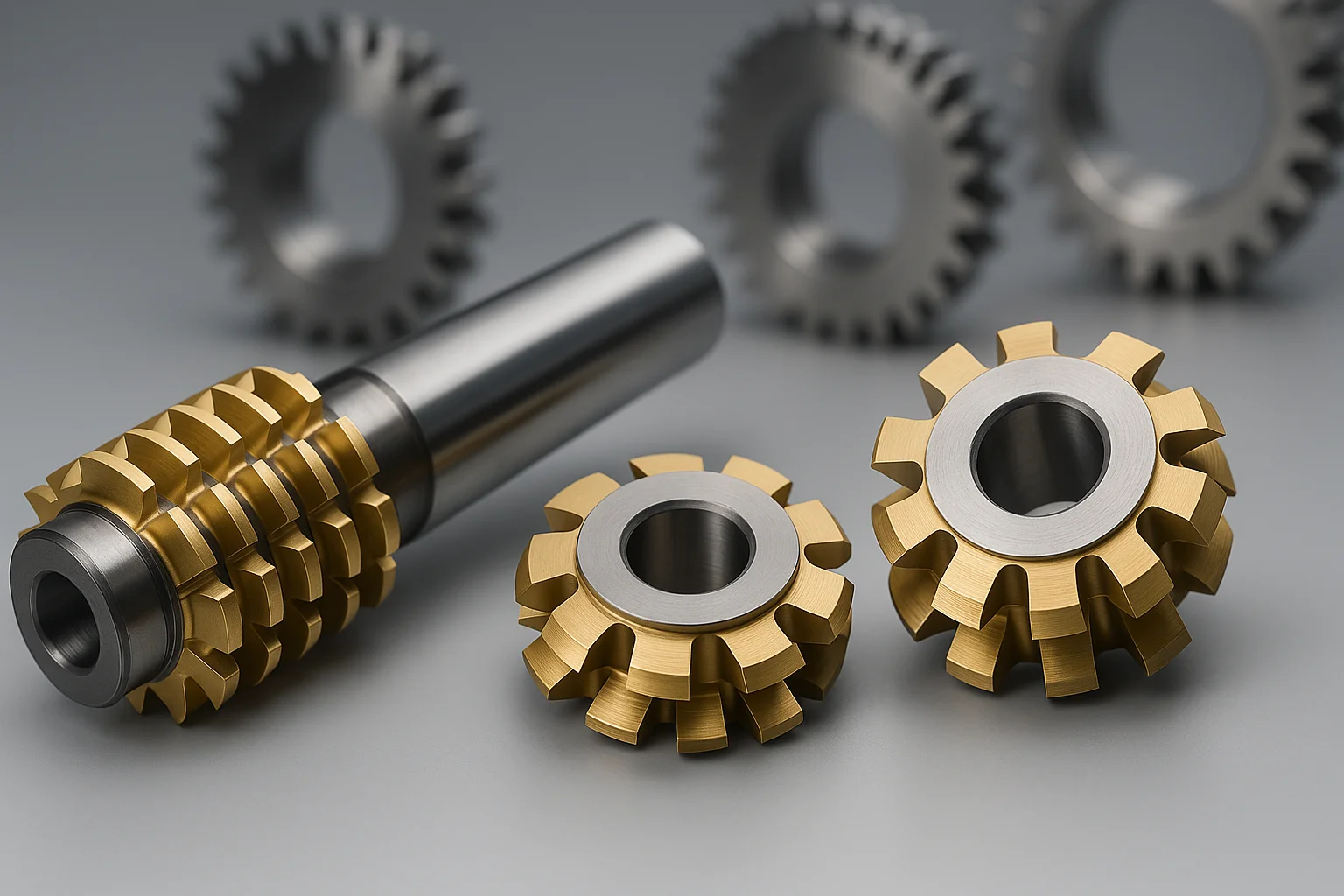

What is a Gear Hob?
A gear hob is a specialized cutting tool shaped like a helix (screw-like form) used in the gear hobbing process. In gear hobbing, the hob rotates in synchronization with the gear blank to gradually generate the gear teeth profile. The hob and the gear blank turn continuously together until all the teeth are cut. This continuous, synchronized cutting makes gear hobbing a highly efficient method for cutting spur gears, helical gears, splines, and more. The speed and continuous nature of gear hobbing make it ideal for large production runs. Gear hobs are typically made of high-speed steel or carbide and have cutting edges that match the shape of gear teeth. They are used on gear hobbing machines, which are common in gear manufacturing plants worldwide due to their productivity and precision.
What is a Gear Milling Cutter?
A gear milling cutter is a form-cutting tool used in a milling process to cut gear teeth, often one tooth at a time. Unlike hobbing, gear milling is usually an indexed process: a cutter (often called a form cutter or involute gear cutter) is fed into a gear blank to cut a tooth, then withdrawn so the blank can index (rotate) to the next tooth position. This cycle repeats for each tooth until the gear is complete. Because the cutter must cut each tooth individually and repeatedly engage and disengage, gear milling is a slower, low-volume production process. Gear milling cutters come in various profiles specific to gear sizes (for example, different cutters for different tooth counts or modules) and are typically used on standard milling machines or CNC machining centers. This method might be chosen for small batches, very large gear blanks that won’t fit on a hobber, or when a specific gear profile requires it. Gear milling cutters, like hobs, can be made of high-speed steel or carbide and may be designed for particular gear types or sizes.
Gear Hobbing vs. Gear Milling: Key Differences
While both gear hobbing and gear milling achieve the same end result (cutting gear teeth), they differ in technique and efficiency. Gear hobbing uses a continuously rotating hob and gear blank, cutting multiple teeth in a synchronized flow. This continuous cutting means hobbing is fast and efficient, well-suited for mass production of gears. On the other hand, gear milling uses a start-stop indexing approach, cutting one tooth at a time with a form cutter, which is inherently slower and better for low-volume or one-off gear production. In practical terms, if you need hundreds or thousands of identical gears (as in the automotive industry), hobbing with a quality gear hob cutter is the go-to choice. If you need just a few replacement gears or a very large gear that requires special handling, gear milling might be more practical. Many gear manufacturing workshops utilize both methods as needed: hobbing for efficiency and milling for flexibility. Understanding these differences helps in selecting the right tool and process for your specific gear project.
Why High-Quality Gear Cutting Tools Matter
Whether you use hobbing or milling, the quality of the gear cutting tool itself is critical. A gear hob or milling cutter is directly responsible for the accuracy of the gear teeth it produces. As industry experts note, hob quality is critical to high-quality gear manufacturing – a poor-quality hob will impart errors to the gear teeth, while a high-quality hob ensures precision. The same concept applies to all gear cutters: better tools yield better gears.
Here are some key benefits of using high-quality gear hobs and milling cutters in your manufacturing process:
- Precision and Accuracy: Top-grade gear hobs are manufactured to strict tolerances (often adhering to standards like AGMA quality classes). Using certified, high-quality hobs that meet these standards ensures that the gears you cut meet the tight specifications required for smooth operation. In high-precision gear manufacturing, selecting the right tool material and quality plays a significant role in ensuring the accuracy and durability of the gears produced. In short, quality tools help you cut precise gear teeth that mesh correctly, reducing noise and wear in the final gear application.
- Better Gear Quality and Longevity: High-quality cutting tools produce superior surface finish and more consistent tooth geometry. This means the resulting gears have higher quality, which translates to longer service life and reliability in the field. For instance, a hob with an optimal profile will cut gears that require minimal post-processing and run with less friction.
- Higher Productivity: Premium gear hobs and cutters often allow for higher cutting speeds and feeds. Advanced tool materials (like cobalt-alloy high-speed steels or carbide) and modern coatings (such as TiN or AlCrN) have significantly improved cutting performance. These innovations let manufacturers run machines faster without compromising tool life, boosting throughput. For example, the introduction of indexable carbide insert gear hobs enabled much higher cutting speeds, which pushed machine builders to create more robust hobbing machines to utilize those tools’ potential. The result is more gears produced per shift and less downtime.
- Longer Tool Life & Cost Savings: A high-quality tool made from advanced materials will stay sharp longer and resist wear. Coated HSS (High-Speed Steel) hobs or solid carbide hobs can cut many more gears before needing replacement or re-sharpening. This longevity reduces the frequency of tool changes. Fewer tool changes and less frequent sharpening mean lower downtime and maintenance costs over time. Although premium tools may cost more upfront, they often deliver a lower cost-per-gear in volume production due to their durability and performance.
- Consistency and Reliability: Sourcing your gear cutting tools from a reputable, high-quality supplier ensures each tool performs to expectations. When you use the same high-quality hob for a production run, you get consistent results from the first gear to the last. Consistency is crucial for industries like aerospace and automotive, where every gear must meet safety and performance standards.
In summary, investing in quality gear hobs and milling cutters is investing in your product quality and operational efficiency. As one gear industry publication put it, today’s higher gear quality requirements demand the use of higher quality cutting tools. Good tools help you avoid gear failures, reduce scrap rates, and keep your production running smoothly.
Factors to Consider When Selecting Gear Hobs and Milling Cutters
Selecting the right gear hob or gear milling cutter for your needs requires careful consideration of several factors. The “best” tool depends on your specific application, the type of gear you’re manufacturing, and your production requirements. Here are key factors industrial buyers and engineers should evaluate when choosing gear cutting tools:
- Gear Specifications: Start with the gear you need to cut. Consider the module or diametral pitch (size of the gear teeth), the pressure angle, number of teeth, gear width, and whether it’s a spur or helical gear. Gear hobs and milling cutters are designed for specific gear geometry ranges. Ensure the tool you choose can cut the gear to the correct specifications. For instance, a hob will be labeled for a certain module (e.g., Module 4, 20° pressure angle) or a range of pitches. Using the correct tool ensures accurate tooth profile generation.
- Production Volume and Process: Determine if gear hobbing or gear milling is more appropriate. As discussed, high-volume production favors using gear hobs on a hobbing machine for efficiency. Low-volume or one-off gears might use a gear milling cutter on a milling machine. If you have a dedicated gear hobbing line for large batches, investing in top-grade hobs is wise. If you occasionally cut gears on a general-purpose machine, a set of good form milling cutters might suffice. Some operations use hobs even for moderate volumes because of their speed advantage, while job shops might opt for milling cutters for versatility.
- Tool Material: HSS vs. Carbide: Choose the tool material based on the material of the gear blank and the production run length. High-Speed Steel (HSS) gear hobs are a traditional choice that offers a good balance of hardness, toughness, and wear resistance. HSS hobs are generally more affordable and can be re-sharpened multiple times, making them cost-effective for many applications. They perform well for standard gear materials (like steel, bronze) and smaller to medium batch sizes. Carbide gear cutting tools, on the other hand, are extremely hard and can maintain a sharp cutting edge far longer than HSS. Carbide is ideal for cutting hard materials and for very high-volume production runs where tool changes must be minimized. The trade-off is that carbide tools are more expensive and can be brittle, requiring careful handling and rigid machines to avoid chipping. In practice, many manufacturers use HSS hobs for versatility and reusability, and reserve carbide hobs or inserts for the most demanding, high-speed cutting jobs or tough materials.
- Tool Design and Coating: Look at the specific design features of the tool. For gear hobs, this includes the hob diameter, number of threads (single-thread vs multi-thread hob), helix angle, and whether it’s a spur or helical hob. Multi-threaded hobs cut faster but may sacrifice some precision compared to single-thread hobs – important if you need ultra-precise gears. Also consider if the hob or cutter has a coating. Common coatingslike Titanium Nitride (TiN), TiAlN, or Aluminum Chromium Nitride (AlCrN) can greatly increase tool life by reducing friction and heat during cutting. A coated HSS hob, for example, can often outlast an uncoated one by a large margin, which is beneficial for longer runs. Ensure the base tool quality is high as well, since a coating is only as good as the substrate underneath.
- Machine Compatibility: Ensure the tool matches the machine you’ll use. Gear hobs might come in bore-type (to mount on an arbor) or shank-type configurations. Verify the hob’s mounting method and size suit your gear hobbing machine (e.g., hob arbor size, maximum hob length/diameter your machine accepts). For gear milling cutters, ensure your milling machine or machining center can hold the cutter (proper spindle size, arbor, etc.) and has the necessary indexing capability (either via a rotary table or CNC program). Also, consider the machine’s rigidity and power: cutting gears, especially with carbide tools, demands a solid setup.
- Quality Grade and Tolerances: Gear cutting tools come in quality grades. For instance, gear hobs are often rated by AGMA or DIN quality classes (like AGMA AA, AAA, etc., or DIN classes), which denote the manufacturing tolerances of the hob. Higher grades (e.g., AGMA AAA) mean tighter tolerances and thus the potential for cutting more precise gears – but they cost more. Decide what quality grade you truly need for your gears. Critical aerospace or high-speed gears might justify the highest grade hob to ensure no errors, whereas a general industrial gear might be fine with a slightly lower grade. Always purchase certified high-quality hobs for critical applications to ensure they meet the claimed standards.
- Supplier Support and Services: Consider what the gear tool supplier offers beyond just the tool itself. Do they offer re-sharpening or recoating services for HSS hobs? Can they customize a gear hob or milling cutter for a non-standard gear profile if needed? Do they have engineering support to help you select the right tool or optimize cutting parameters? Choosing a supplier with strong technical support can save you time and ensure you get the most out of the tools. Also, evaluate their quality control – a manufacturer with ISO certifications or a proven track record in gear tooling is more trustworthy for consistent quality. Reading case studies or testimonials from other industrial buyers can be helpful here.
By weighing all these factors – gear specs, volume, material, design, machine fit, quality, and support – you can narrow down the exact type of gear hob or cutter you need. This ensures you invest in a tool that will perform well and provide a good return on investment in your manufacturing process.
Partnering with the Right Gear Tool Manufacturer
Selecting the right gear cutting tool is only half the battle; the other half is choosing the right
supplier or manufacturer for those tools. A reliable gear hob and cutter manufacturer will not only deliver quality products but also act as a partner in your success. Here’s why partnering with a high-quality gear tool supplier matters:
- Consistent Quality and Certification: As mentioned, hob quality directly affects gear quality. Reputable manufacturers adhere to international standards and deliver hobs and cutters that are precision-made and certified. This means you can trust that each batch of tools will perform like the last. Look for suppliers that manufacture to AGMA, DIN, or ISO standards for gear tools, ensuring that tolerances and hardness are as specified.
- Wide Product Range: Industrial buyers often need a range of tools – different sizes, modules, and cutter types for different jobs. Leading suppliers typically offer a comprehensive catalog of gear hobs (for spur gears, helical gears, worm gears, sprockets, etc.) and gear milling cutters (various involute form cutters, rack cutters, etc.). Having a one-stop shop for all your gear tooling needs simplifies procurement and ensures compatibility across tools. For example, our Gear Milling Cutters product page (internal link) showcases a full range of gear hobs and form cutters in both HSS and carbide, covering modules and diameters for almost any gear project.
- Technical Expertise and Support: A good gear tool manufacturer doesn’t just sell you a tool; they help you use it optimally. They can assist in selecting the right cutter material and coating for your application or provide guidance on cutting speeds and feeds for different materials. Some may offer training resources or consultation for improving your gear production process. This expertise is invaluable, especially if you are adopting a new cutting technology or trying to improve tool life. Working with an experienced supplier gives you access to decades of gear manufacturing knowledge.
- Customization and Special Orders: Not all gears are standard. You might encounter a custom gear profile or an unusual size that off-the-shelf tools can’t handle. In such cases, a capable gear cutting tool manufacturer can design and produce custom gear hobs or cutters for your needs. This ability to get bespoke tooling can set your operation apart, allowing you to manufacture unique or proprietary gear designs. When evaluating suppliers, check if they have custom manufacturing capabilities and a history of developing special cutters for clients.
- After-Sales Service: Like any cutting tool, gear hobs eventually require re-sharpening. Many high-quality suppliers offer reconditioning services to sharpen, repair, or recoat your tools, extending their life and saving cost compared to buying new tools each time. Quick turnarounds on re-sharpening can keep your downtime minimal. Additionally, consider the supplier’s customer service responsiveness – how quickly do they fulfill orders, do they keep inventory for fast shipping, and can they handle urgent requests? In industrial manufacturing, timing can be critical if a tool breaks unexpectedly; a supplier that can expedite a replacement is a true partner.
In essence, when you choose a gear cutting tool supplier, you’re also choosing a collaborator for your manufacturing process. Prioritize suppliers known for quality and reliability. This partnership will ensure you always have the right tools to keep your production lines running efficiently and your end-product gears meeting the highest standards.
Conclusion: Drive Efficiency with the Best Gear Hobs and Cutters
High-quality gear hobs and gear milling cutters are key enablers of efficient, precise gear manufacturing. By understanding the differences between hobbing and milling, recognizing the importance of superior tooling, and considering all the factors above, industrial decision-makers can make informed purchases that boost production and product quality. The right gear cutting tools, obtained from a trusted supplier, will pay dividends in higher throughput, fewer errors, and happier customers who receive reliable gear products.
